JAC0524XLS Schauer 24V 5A

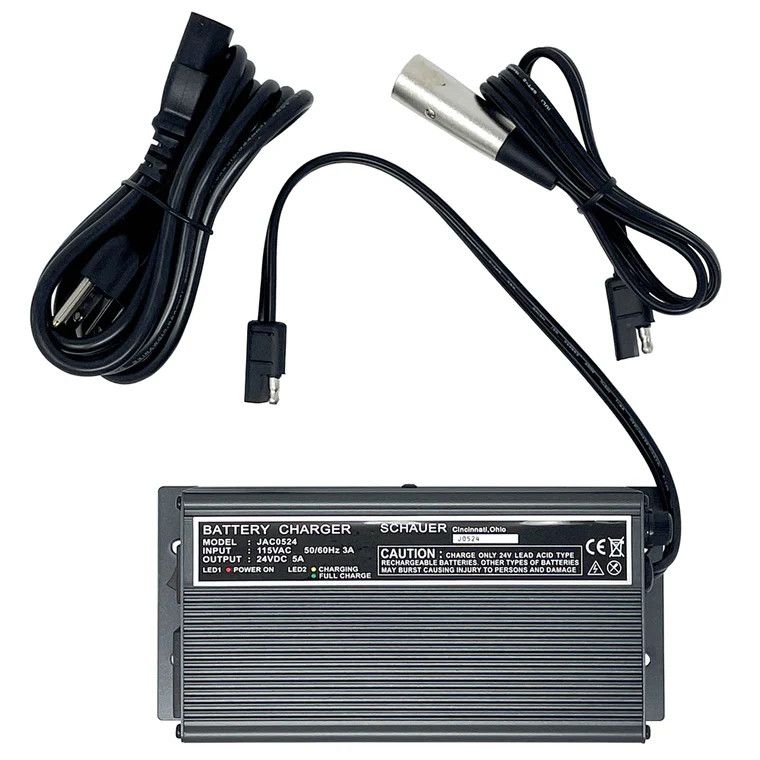

JAC0524-XLR - Schauer 24V, 5A Fully Automatic Electronic Charger/Maintainer - XLR 3-Pin Plug

Model: JAC0524-XLR (0891-24)

The Schauer JAC0524-XLR is a Fully Automatic, 3-Stage Electronic Charger designed with a 3-Pin XLR DC Plug. This charger is ideal for charging and maintaining batteries in medical mobility scooters and wheelchairs equipped with 24-volt battery systems up to 75AH capacity.

This Intelligent Charger can be left connected to the battery indefinitely, ensuring it remains safely charged without the risk of overcharging. It is compatible with all types of lead acid batteries, including:

• Conventional flooded cell
• Maintenance-free
• Deep cycle
• Gelled-electrolyte
• AGM valve-regulated batteries

The 3-Stage Charge Control system ensures optimal charging by providing Modified Constant Current Charge to a constant finishing voltage, followed by a float/standby voltage to maintain the battery in a fully charged condition.

FEATURES

• Fully Automatic with Float/Maintenance Mode
• Indefinite Connection: Can remain connected to batteries safely
• Universal Compatibility: Charges all types of lead acid batteries
• 115VAC Input
• Durable Design: Mountable aluminum case with LED status lights
• Current Limiting
• Safety Features: Short Circuit and Reverse-Polarity protection (user-replaceable fuse)
• High Performance: Full current at 25.2V continuous, 100% duty cycle

SPECIFICATIONS

• Finish Voltage: 28.8V ±0.2
• Float Voltage: 26.5V ±0.2
• AC Input Voltage: 115VAC 50/60Hz (220/240VAC conversion available, see manual)
• AC Input Amps: 3A
• Nominal DC Output Volts: 24V
• Nominal DC Output Amps: 5A
• Minimum Battery Voltage Required to Start Charging: 8V
• AC Cord: 72", grounded North America 115VAC plug (IEC C13 connector)
• DC Lead: 45", with 3-Pin XLR Plug (#1 Pin POS+)
  • Includes replaceable 33" XLR plug adapter
• Dimensions:
  • Case Length: 6.5" (excluding mounting flanges)
  • Overall Length: 7.5" (including mounting flanges)
  • Width: 3.5"
  • Height: 1.8"
• Weight: 3 lbs.
• Approvals: UL/cUL, CE

OPERATIONS

• Important Notes:
  • Not intended for use as a DC power supply
  • Operate in an environment with proper ventilation
  • Do not operate in a damp or wet environment

LED Status Indicator Light in Normal Charge Cycle:

• LED1 (Left): RED – AC power connected, Power Switch ON
• LED2 (Right): YELLOW – Charging (Bulk and Absorption stages) - Fan On
• LED2 (Right): GREEN – Battery Charged, Charger in Maintenance Float Mode - Fan Off

Troubleshooting:
If LED2 is GREEN when initially connected to a known discharged battery (instead of YELLOW, which indicates normal operation), there is a FAULT in the output connection. Check for the following conditions:

1. Charger Not Connected
2. Minimum Battery Voltage Not Sensed (8V minimum)
3. Output Fuse Blown (check the fuse under the twist cap)

RECOMMENDATION

For optimal performance, chargers in this range should have an amperage output that equates to approximately 10-15% of the AH capacity of the battery being charged. For example:

• This 5A charger is suitable for batteries with a maximum AH capacity in the 50AH-75AH range.

Using chargers with marginally low output ratings may result in excessively long battery charge times or potential damage to the charger.
