JAC0724XLR Schauer 24V 7A
+6
+5
+4
+3
+2

JAC0724XLR Schauer 24V 7A

SKU JAC0724XLR
$169.95
In stock: 2 available
Product Details
UPC: 078942089629
Brand: Schauer
Tags: JAC0724XLR

Overview

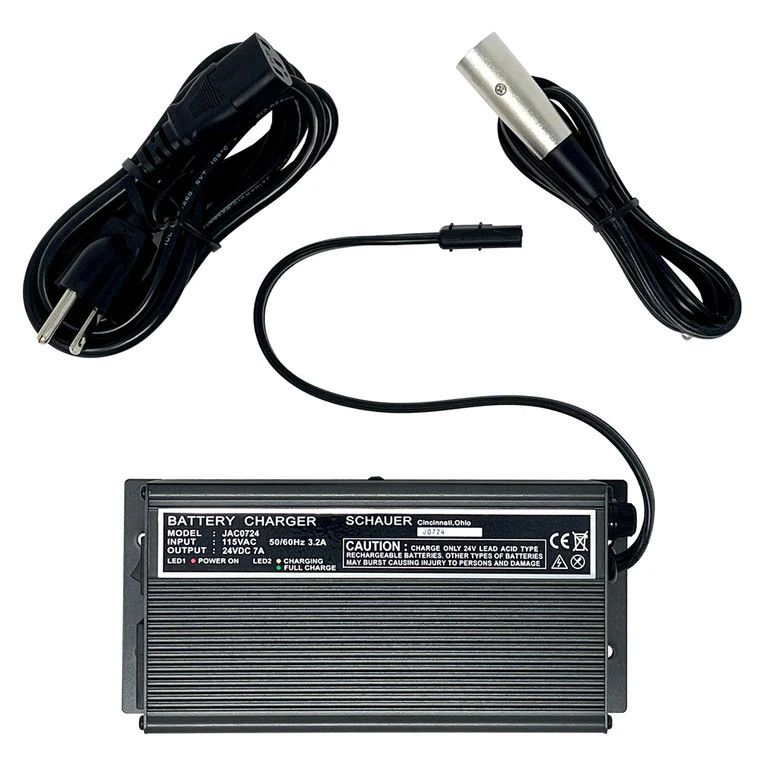

The Schauer JAC0724-XLR is a 24V, 7A Fully Automatic, 3-Stage Intelligent Electronic Charger equipped with a 3-Pin XLR DC Plug, making it ideal for charging and maintaining batteries in medical mobility scooters and wheelchairs with 24-volt battery systems up to 105AH capacity. This charger is designed for long-term use and can be left connected to batteries indefinitely without the risk of overcharging.

Key Features

  • Fully Automatic with Float/Maintenance Mode.
  • Safe for indefinite connection to batteries.
  • Compatible with all types of lead acid batteries, including:
    • Conventional flooded cell.
    • Maintenance-free.
    • Deep cycle.
    • Gelled-electrolyte.
    • AGM valve-regulated batteries.
  • 115VAC Input for convenience.
  • Durable aluminum case with LED status lights.
  • Current limiting for protection.
  • Short Circuit and Reverse-Polarity Protection (user-replaceable fuse).
  • Operates at full current (25.2V continuous) with a 100% duty cycle.

Specifications

  • Finish Voltage: 28.8V ±0.2
  • Float Voltage: 26.5V ±0.2
  • AC Input Voltage: 115VAC 50/60Hz (220/240VAC conversion available, see manual).
  • AC Input Amps: 3.2A.
  • Nominal DC Output Volts: 24V.
  • Nominal DC Output Amps: 7A.
  • Minimum Battery Voltage Required to Start Charging: 8V.
  • AC Cord: 72", grounded North America 115VAC plug (IEC C13 connector).
  • DC Lead: 45", with 3-Pin XLR Plug (#1 Pin POS+) (includes replaceable 33" XLR plug adapter).
  • Dimensions:
    • Length (case): 6.5" (not including mounting flanges).
    • Length (overall): 7.5" (includes mounting flanges).
    • Width: 3.5".
    • Height: 1.8".
  • Weight: 3 lbs.
  • Approvals: UL/cUL, CE.

Operation Guidelines

  • Not intended for use as a DC power supply.
  • Ensure operation in an environment with proper ventilation.
  • Avoid operating in damp or wet conditions.

LED Status Indicator Light

  • LED1 (Left): RED – AC power connected, Power Switch ON.
  • LED2 (Right): YELLOW – Charging (Bulk and Absorption stages), Fan ON.
  • LED2 (Right): GREEN – Battery Charged (Maintenance Float mode), Fan OFF.

Important Note: If LED2 shows GREEN when initially connected to a known discharged battery (instead of YELLOW), there is an output connection fault. Check for:

  1. Charger not connected.
  2. Minimum battery voltage not sensed (8V minimum).
  3. Output fuse blown (inspect fuse under twist cap).

Recommended Usage

For optimal performance, ensure the charger's amperage output matches approximately 10-15% of the AH capacity of the battery being charged. For instance, this 7 amp charger is best suited for batteries with a maximum AH capacity in the 70AH-105AH range. Chargers with insufficient output ratings may result in excessively long charging times.
