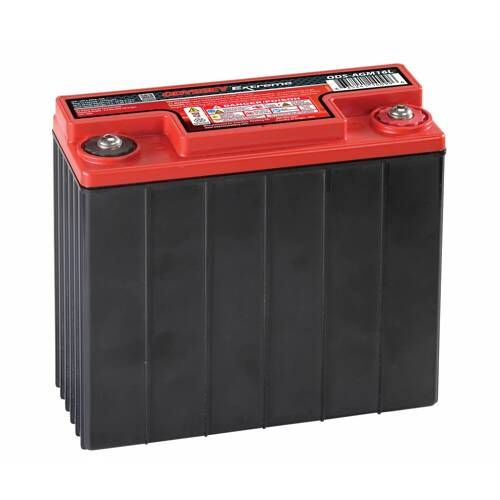

ODS-AGM16L Odyssey 170CCA PC680

Price includes Core Charge that is refundable when old batteries are returned to the store. If purchased online for shipment, core is non-refundable.

Motorcycle Sealed AGM Maintenance-Free 12 Volt Battery

• NON-SPILLABLE AGM BATTERY FULLY CHARGED READY TO GO

Powersport vehicles need a powerful battery that’s built to take the constant pounding that comes with the territory, whether it’s on land, sea, or snow.

The ODYSSEY battery can handle it. Featuring rugged construction and packed tightly with pure lead plates, the non-spillable AGM design ODYSSEY battery protects against the shock and vibration that can quickly destroy other batteries. Pure lead plates deliver more power—twice the overall power and three times the life of conventional batteries—up to 400 cycles at 80% depth of discharge!

Dimensions

• Length: 7.20" / 183mm
• Width: 3.00" / 76mm
• Height (terminals included): 6.40" / 163mm
• Height (container): 6.60" / 168mm
• Weight: 15.40 lbs / 7.0kg

Specifications

• Voltage: 12V
• Pulse (5 second) Hot Cranking Amps (PHCA): 520A
• Cold Cranking Amps (CCA): 170A
• HCA: 350A
• MCA: 280A
• 20Hr Nominal Capacity (Ah): 16Ah
• 10Hr Nominal Capacity (Ah): 16Ah
• Reserve Capacity Minutes: 24 mins
• Terminal: M6 Receptacle
• Torque Spec in-lbs (Nm max): 50 (5.6)
• Internal Resistance (mΩ): 7mΩ
• Short Circuit (A): 1800A
• Operating Temperature Range: -40°F / -40°C to 113°F / +45°C
• Optimum Storage Temperature: 68°F / +20°C

Replaces

• Odyssey PC680
