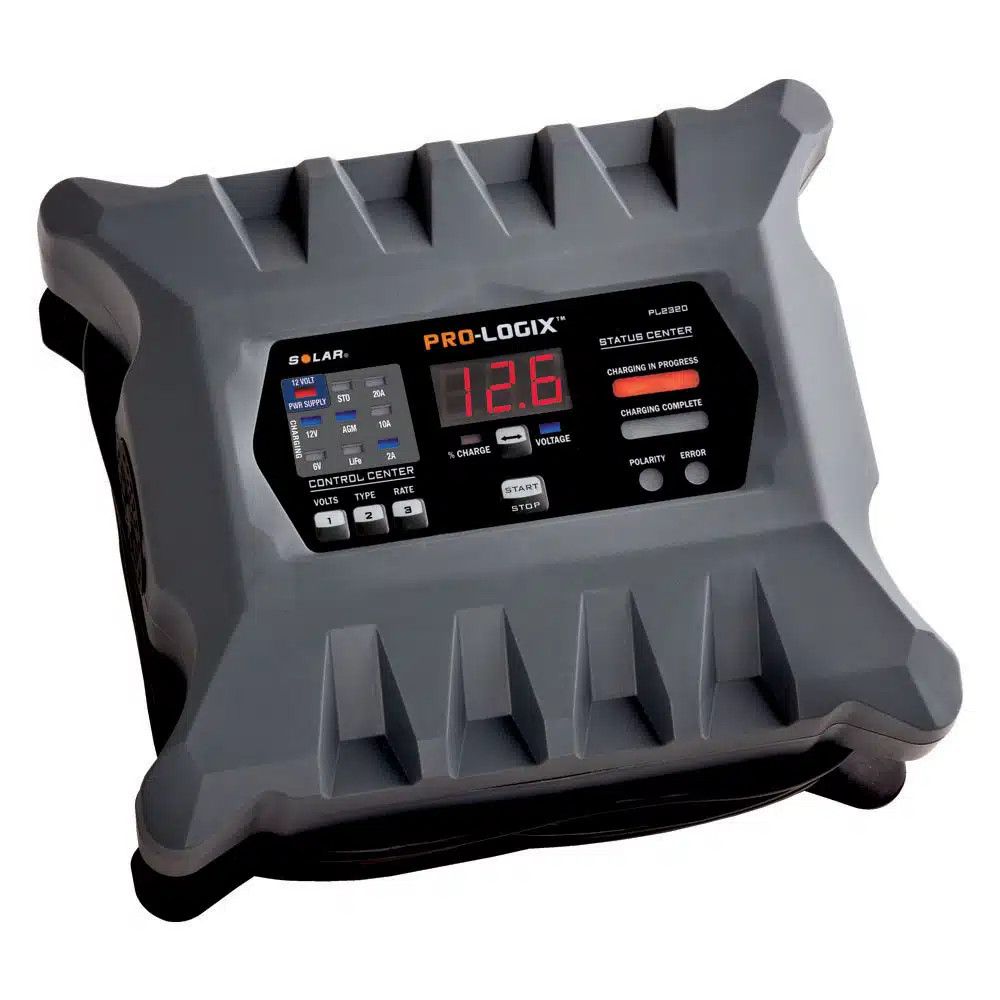

PL2320 Solar Pro-Logix 2/10/20A

2/10/20 Amp 6/12V Intelligent Battery Charger and Maintainer

The PL2320, 20/10/2A 6/12V Intelligent Battery Charger and Maintainer from Clore Automotive, puts a brainy buddy at your side for safe, efficient battery charging, repair and maintenance. This versatile unit can save you space, money and time. Rather than purchasing, storing and reaching for multiple units, you can accomplish a variety of chores with this multitasking machine. It will work with batteries from smaller machines like motorcycles, jet skis and lawn tractors to larger equipment like cars, trucks, SUVs, commercial vehicles and agricultural equipment. It’s a one-stop shop for battery and vehicle maintenance.

Combining fully automatic operation and the ability to properly charge multiple battery types, the PRO-LOGIX PL2320 is the perfect charger to meet the needs of today’s and tomorrow’s professional technician. It is intelligent, beneficial, safe and versatile. One charger does it all, from fast charging and battery repair to battery maintenance and long-term storage charging. With the ability to properly charge virtually any battery type installed in a North American vehicle, this is the only charger you will need. It can be used to properly charge flooded, AGM spiral wound, marine and deep cycle lead acid batteries as well as LiFePO4 Lithium batteries. Like all PRO-LOGIX chargers, it features a forced start mode that enables it to effectively charge even totally dead batteries.

The increased use of electronic components in vehicles these days means chargers have to be precise as well as strong. For today’s shop, there is a very real need for an up-to-date charger capable of supplying the clean power needed to perform a wide variety of diagnosis, repair and maintenance applications. The PRO-LOGIX PL2320 is an ideal charger/power supply for such situations.

It utilizes advanced microprocessor technology to deliver a precise power delivery in a very tight voltage window. This is exactly what the system wants when the charger is supplying power to maintain battery voltage during an on-vehicle repair or diagnosis of an electrical system component. The PL2320 is an ideal tool for maintaining system voltage and avoiding battery drains during key-on ADAS recalibrations.

Besides fast-charging, this unit is ideal for trickle-charging batteries in stored vehicles. It also has a recondition mode to rejuvenate batteries with sulfation problems.

• Six- and 12-volt battery charging
• 20/10/2A charge rates
• 20A fast charge rate is ideal for charging large batteries
• 0-20A power supply mode to maintain vehicle voltage
• Fully automatic operation
• Advanced multi-phase charging process
• Services virtually all battery types, including LiFePO4 Lithium
• Able to charge even zero volts (totally dead) batteries
• Soft Start Mode for severely depleted batteries
• Recondition Mode rejuvenates distressed batteries
• Enhanced maintenance mode for ideal long-term storage
• Temperature compensation for more effective charging
• Reverse polarity protection and battery fault detection
• Data-rich display provides detailed feedback during charging

Specifications

Operating Voltage : 6/12V

Operational Mode : Automatic

Charging Rates : 20/10/2A

Charging Phases : 7

Enhanced Maintenance Mode : Yes

Reverse Polarity Protection : Yes

Battery Fault Detection : Yes

Battery Recondition Mode : Yes

Soft Start Mode : Yes

Temperature Compensation : Yes

Output Cable Length : 72″

Output Cable Gauge : 12 AWG

Weight : 4.7 lbs.

Warranty : 1 Year Limited

UPC : 010271025312
