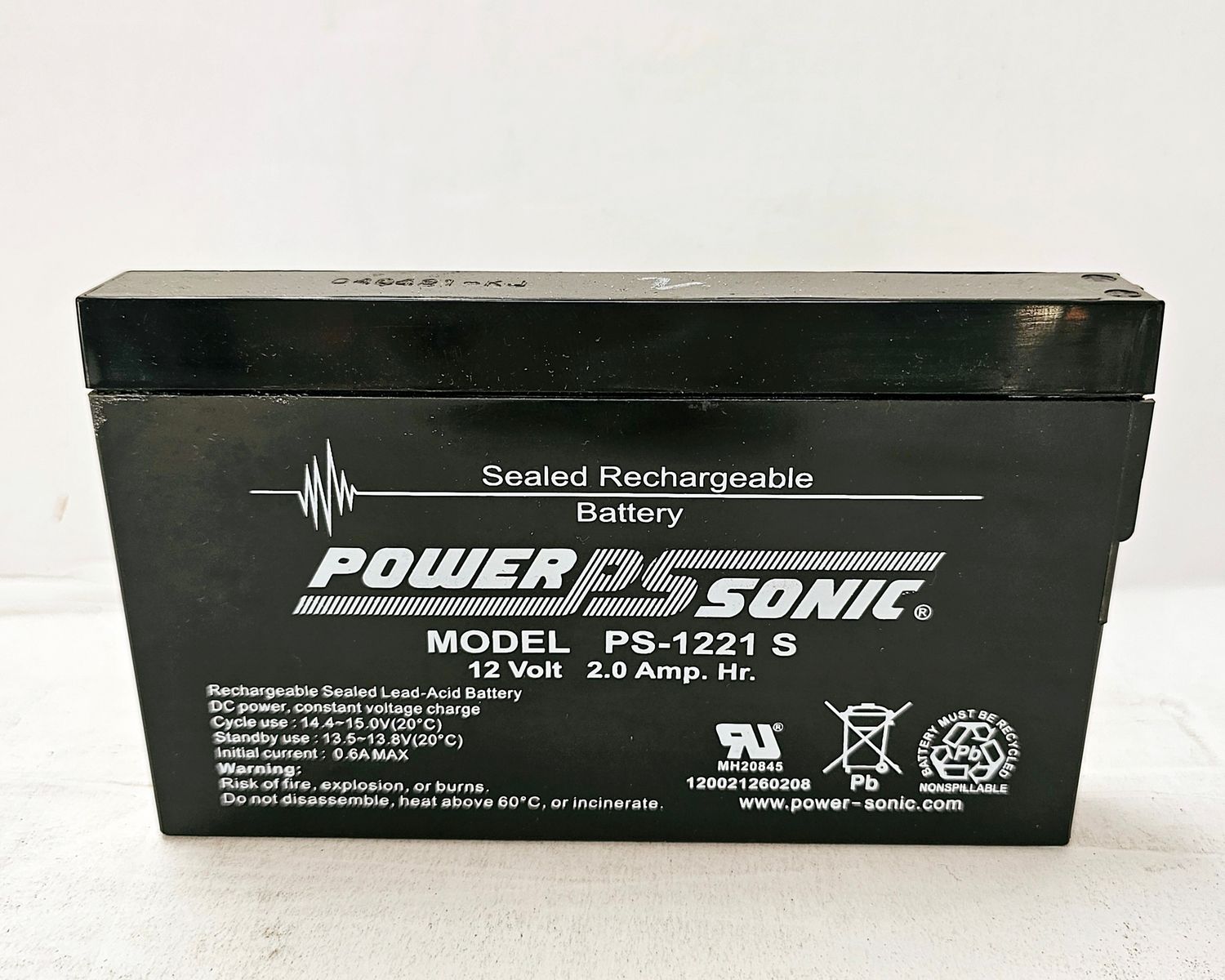

PS-1221S PowerSonic 12V 2.0Ah

SEALED LEAD ACID 12VOLT 2.0Ah BATTERY

• Emergency lighting

• Security & Fire Systems

• UPS

• Medical Devices

• Wheelchair and scooters

Specifications:

• Chemistry: SLA (Sealed Lead Acid)
• Case: ABS Plastic
• Terminal Type: F1
• Nominal Voltage: 12 Volts (6 Cells)
• Nominal Capacity:
  • 20-Hour (100mA to 10.5V)........... 2.00 Ah
  • 10-Hour (190mA to 10.5V)........... 1.90 Ah
  • 5-Hour (340mA to 10.2V)............. 1.70 Ah
  • 1-Hour (1.24A to 9.0V)................. 1.24 Ah
  • 15-Min. (3.33A to 9.0V)................ 0.83 Ah
• Energy Density (20-Hour Rate): 1.44 W-h/in³ (88.00 W-h/l)
• Specific Energy (20-Hour Rate): 16.00 W-h/lb (35.27 W-h/kg)
• Max Discharge Current (7 Min.): 6.0A
• Max Short-Duration Discharge Current (10 Sec.): 20.0A
• Internal Resistance (approx.): 80.0 milliohms
• Operating Temperature Range:
  • Charge: -4°F (-20°C) to 122°F (50°C)
  • Discharge: -40°F (-40°C) to 140°F (60°C)
• Dimensions (L x W x H): 5.91" x 0.80" x 3.52" (150mm x 20mm x 89mm)
• Approximate Weight: 1.50 lbs. (0.68 kg)
