PSC-12100000ACX SLA Charger 12V

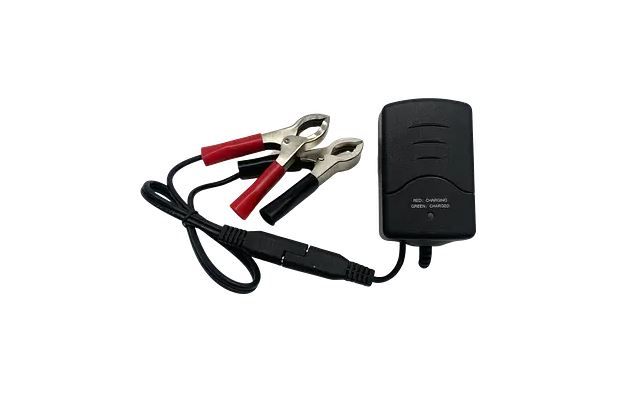

Power-Sonic PSC-121000A-C C-Series Sealed Lead Acid Battery Charger

Multiple Charging Modes

Charge your sealed lead acid batteries safely and efficiently with the Power-Sonic PSC-121000A-C Dual Rate Battery Charger! This compact charger is designed specifically for use with 12V SLA batteries with capacities between 4 and 8 Ah, outputting 1000 mA of current to quickly but steadily return them to full power.

The device features two distinct charging modes that it automatically selects based on your battery's needs:

• FAST Mode: Uses a higher voltage to recharge the power source as swiftly as possible without compromising battery life.
• FLOAT Mode: Once charging is complete, the charger switches to a lower voltage to maintain the full charge while staying connected indefinitely, making it safe to leave unattended.

Features:

• Dual rate charger automatically adjusts output voltage to match the battery's needs.
• LED indicators (Red and Green) display the current charging mode.
• Built-in protections against overcharging and reverse polarity.
• Compact wall-mount design for easy installation.
• UL and CE Certified for safety and reliability.

Specifications:

• Input Voltage: 110-240V, 50-60 Hz
• Output Voltage:
  • Float Mode: 13.50V
  • Fast Mode: 14.70V
• Output Current: 1000mA
• Compatible SLA Batteries:
  • Voltage: 12V
  • Capacity: 4Ah to 8Ah
• Operating Temperature Range: 32°F to 104°F (0°C to 40°C)
• Dimensions:
  • Length: 2.24" (57 mm)
  • Width: 1.73" (44 mm)
  • Height: 3.23" (82 mm)
• Weight: 4.94 oz (140 g)

This versatile and reliable charger is perfect for maintaining your 12V SLA batteries with ease and safety.
