PSL-BTP-122000 PowerSonic 200Ah LifePO4
SKU PSL-BTP-122000
$1 999.85
Sold out
Sold out
Product Details
Brand: PowerSonic
Tags: PSL-BTP-122000, Group 27, DC27, DC-27, 8A27M

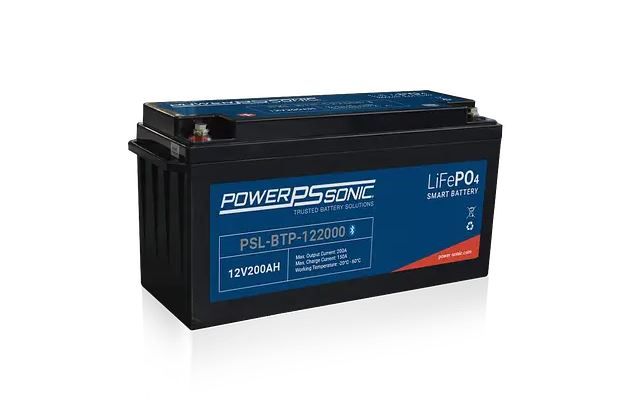

Power Sonic Lithium Iron Phosphate 12.8V 200Ah Battery with BlueTooth
SPECIAL ORDER - PLEASE CALL FOR LEAD TIME AND MORE INFO
BATTERY FEATURES
• Compact and only 40% of the weight of comparable lead
acid batteries
• Up to 10 times more cycles than lead acid batteries
• Faster charging and lower self-discharge
• Delivers twice the power of lead acid batteries, even high
discharge rate, while maintaining high energy capacity
• Super safe chemistry reducing the risk of explosion or
combustion due to high impact, over-charging or short
circuit situation
• Rugged impact resistant ABS case and cover flame
retardant to UL94:V0
• Battery Management System (BMS) controls the parameters
of the battery to provide optimum safety and performance
• BMS enhanced design balances the battery cells and
protects against overcharging and discharging
• Bluetooth® communication capability for battery status
through Power Sonic app
Series & Parallel Connection: Up to 4 packs can be connected in parallel (12V). CANNOT be connected in series (12V + 12V = 24V)
Specifications:
| Nominal Volts |
12.8v |
|---|---|
| Height with Terminal in. (mm) |
8.47" (215mm) |
| Width in. (mm) |
6.50" (165mm) |
| Length in. (mm) |
12.52" (318mm) |
| Weight lbs (kg) |
28.2 lbs (12.8 kg) |
| Terminal Configuration |
M8 |
| RATED CAPACITY | |
| Capacity @ 20 Hr Rate |
100 Ah |
| Cycle Life (@DOD 100%) |
<= 2000 cycles |
| Max Charge Current |
80A |
| Max Discharge Current |
100A |
| Pulse Discharge Current |
300A withstand 3s |
| Discharge Cut-Off Voltage |
10.0V |
| Protection/Communication |
BMS and Bluetooth |
| Connection Options |
Up to 4 packs can be connected in parallel. CANNOT be connected in series. |
| Operating Temperature Range |
Charge: 32°F (0°C) to 113°F (45°C) |
